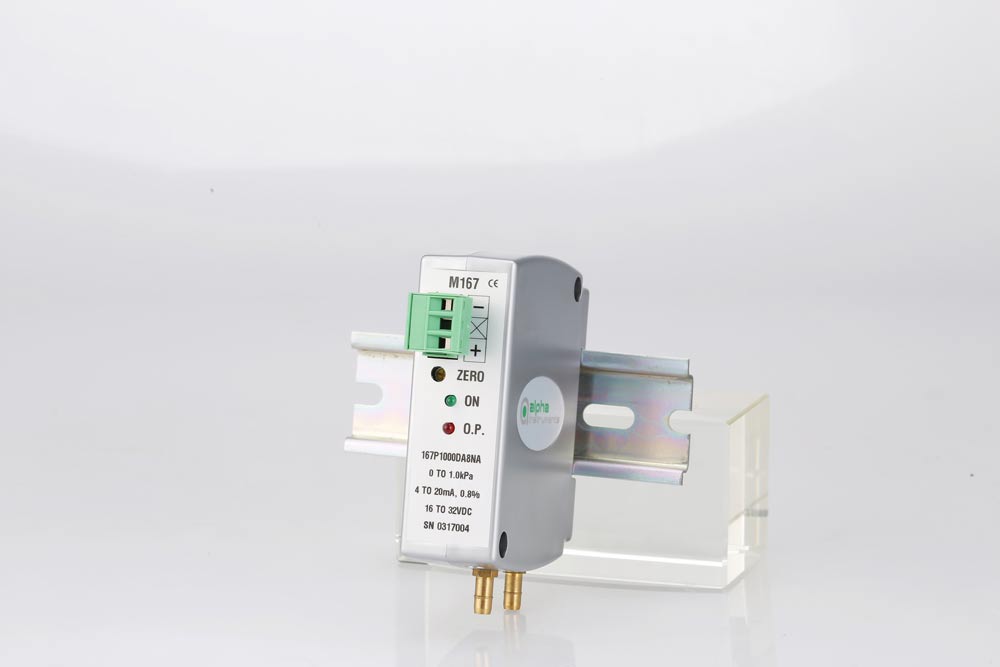

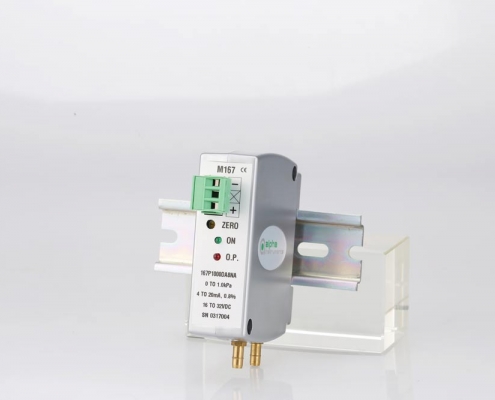

Model 167 Differential Pressure Transmitter

Overview

Model 167 series are low range differential pressure transducers and transmitters. It was specially designed for 35mm DIN Rail Mount, which dramatically reduces the required mounting space and installation cost. The green and red LED indicators show the working status of the unit in the field.

Key Features:

  • Up to 15 PSI Proof Pressure on all Ranges
  • LED working status indicators
  • DIN Rail Mount
  • Detachable Euro style terminal block reduces wiring errors and field wiring time.
  • Miswiring Full Protection
  • Unsymmetrical Bidirectional Pressure Ranges
  • True Zero Output for Voltage Unit

Specification:

  • Accuracy: ±0.25%, ±0.40% or ±0.60% of span
  • Differential Pressure Ranges:

Unidirectional: 0.10 in.W.C. to 100.00 in.W.C.

Bidirectional: ±0.10 in.W.C. to ±50.00 in.W.C.

  • NEMA 1; ABS enclosure
  • Mounting: DIN rail or surface mount
  • Output signal: current or voltage
Applications
  • Power plant air flow monitor and control
  • Textile Machinery
  • Clean room and fume hood control
  • Duct static pressure measurement
  • Draft Control
  • HVAC and VAV control
  • Furnace air flow control
Certificates & Approvals

CE
RoHS
